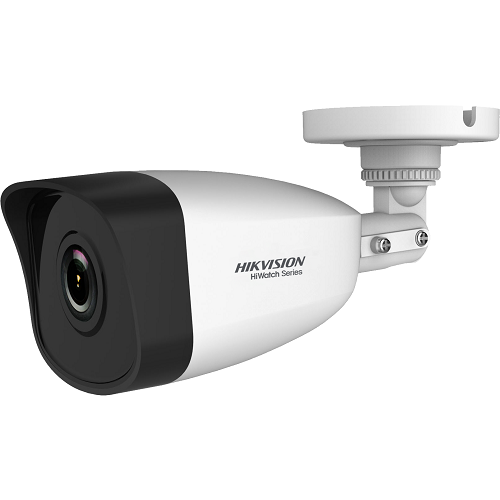

Hikvision HWI-B121H 2.8mm 2MP IR Network Bullet Camera

Hikvision HWI-B121H 2.8mm 2MP IR Network Bullet Camera

Availability: In Stock
₱1,980.00
Wishlist
    • 2.0 MP IR Network Bullet Camera 1/2.8" progressive scan CMOS 1920 × 1080@30fps 2.8 mm fixed lens H.265, H.264 Dual stream Digtal WDR (Wide Dynamic Range) 3D DNR (Digital Noise Reduction) Up to 30 m IR range PoE (Power over Ethernet) IP6


    Product properties

    Camera
    Appearance Bullet
    Image Sensor 1/3" progressive scan CMOS
    Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @ (F2.0, AGC ON)
    Shutter Speed 1/3 s to 1/100, 000 s
    Slow Shutter Yes
    Auto-Iris No
    Day & Night IR cut filter
    Digital Noise Reduction 3D DNR
    WDR 120 dB
    Angle Adjustment Pan: 0° to 360°, tilt: 0° to 180°, rotation: 0° to 360°
    Lens
    Focal Length 2.8 mm, 4 mm
    Aperture F2.0
    Focus Fixed
    Angle of view 2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
    4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
    Lens Mount M12
    IR
    IR Range Up to 30 m
    Wavelength 850 nm
    Compression Standard
    Video Compression Main stream: H.265/H.264
    Sub stream: H.265/H.264/MJPEG
    H.264 Type Baseline Profile/Main Profile/High Profile
    H.264+ Main stream supports
    H.265 Type Main Profile
    H.265+ Main stream supports
    Video Bit Rate 32 Kbps to 8 Mbps
    Smart Feature-Set
    Region of Interest 1 fixed region for main stream and sub-stream
    Resolution 4MP
    Main Stream Max. Frame Rate 50Hz: 20fps (2560 × 1440), 25fps (2304 × 1296, 1920 × 1080, 1280 × 720)
    60Hz: 20fps (2560 × 1440), 30fps (2304 × 1296, 1920 × 1080, 1280 × 720)
    Sub-stream Max. Frame Rate 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
    60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
    Image Enhancement BLC, 3D DNR
    Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
    Day/Night Switch Auto, scheduled, day, night
    Network
    Alarm Trigger Motion detection, video tampering alarm, illegal login
    Network Storage NAS (NFS, SMB/CIFS)
    Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 UDP, Bonjour
    General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
    API ONVIF (PROFILE S, PROFILE G), ISAPI
    Simultaneous Live View Up to 6 channels
    User/Host Up to 32 users
    3 levels: Administrator, Operator, and User
    Client iVMS-4200, Hik-Connect
    Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51
    Interface
    Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
    General
    Operating Conditions -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
    Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug
    PoE (802.3af, class 3)
    Power Consumption 12 VDC, 0.4 A, Max: 5 W
    PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, Max: 6.5 W
    Ingress Protection level IP 67
    Material Front cover: metal, camera body: plastic, bracket: plastic
    Dimensions Camera: Ø 70 mm × 191.3mm (Ø 2.7" × 7.5")
    With package: 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
    Weight Camera: approx. 280 g (0.6 lb.)
    With package: approx: 530 g (1.2 lb.)
