PVA VIDEO BALUN

PVA VIDEO BALUN

Availability: In Stock
₱250.00
Wishlist

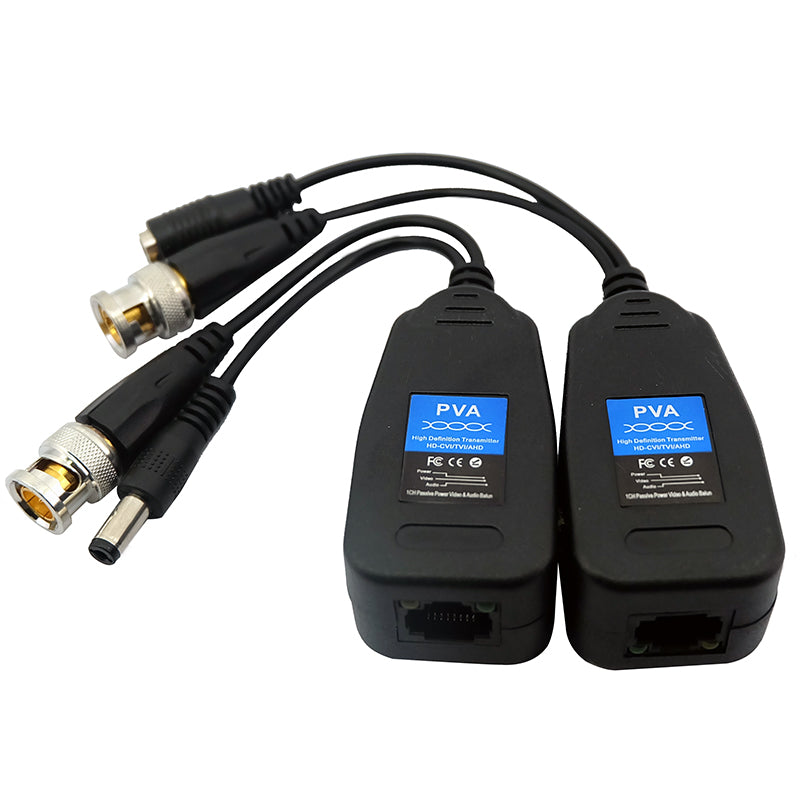

PVA ,3 in1 HD Video Balun for  CVI AHD TVI HD cameras

(Power+Video+Audio)

HM-933PV/HM-933PVD Optional

The effective transmission distance 600m

Using twisted pair instead of 75 ohm coaxial cable as the transmission of video signals. Ensure the quality of the image, enhance image clarity. Excellent control interference / anti-surge. Cable utilization, reduce the cost of the project.

Power input: no need to provide

Image Access: BNC (male)

Input image formats: NTSC / PAL / CCIR / SECAM

Frequency Response: DC - 10MHz

Twisted-pair connection point: a group of single-point connection head

Common Mode Rejection: 70db

Input Impedance: 75 ohms

Output impedance: 100 ohms

Use wire: a twisted pair: unshielded twisted pair UTP
