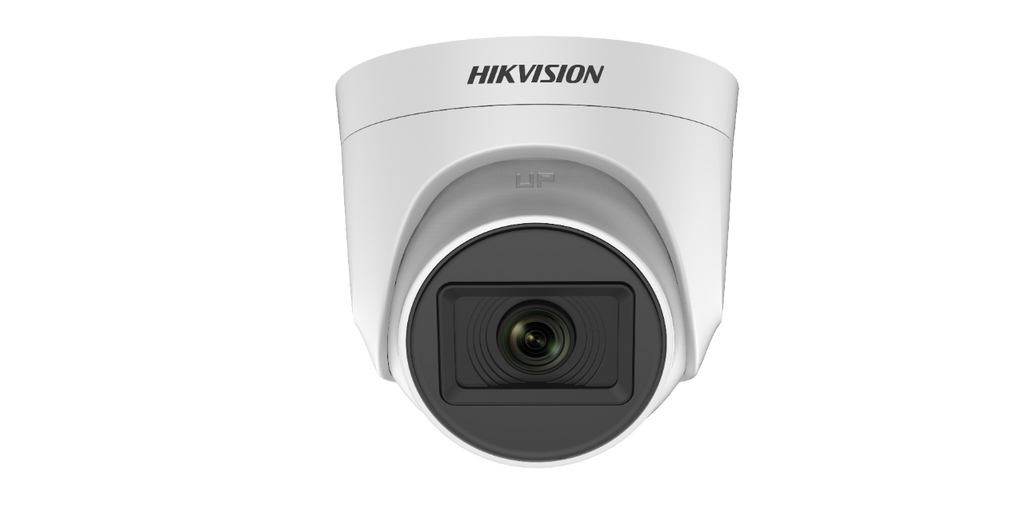

HIKVISION DS-2CE76H0T-ITPF(C) | 5 MP Indoor Fixed Turret Camera

HIKVISION DS-2CE76H0T-ITPF(C) | 5 MP Indoor Fixed Turret Camera

Availability: In Stock
₱1,100.00
Wishlist

5 MP Indoor Fixed Turret Camera

  • 5 MP turret camera
  • EXIR 2.0: advanced infrared technology with 20 m IR distance
  • 4 in 1 (4 signals switchable TVI/AHD/CVI/CVBS)
Image Sensor 5 MP CMOS image sensor
Max. Resolution 2560 (H) × 1944 (V)
Min. Illumination Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
Shutter Time

PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Day & Night ICR
Angle Adjustment Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Signal System PAL/NTSC
Lens Type 2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV

2.4 mm, horizontal FOV: 110°, vertical FOV: 81°, diagonal FOV:137°

2.8 mm, horizontal FOV: 85°, vertical FOV: 63°, diagonal FOV:110°

3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV:105°

6 mm, horizontal FOV: 57°, vertical FOV: 43°, diagonal FOV:72°

Lens Mount M12
Image Parameters Switch STD/HIGH-SAT
Image Settings Brightness, Sharpness, DNR, Mirror, Smart IR
Frame Rate

TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

AHD: 5M@20fps, 4M@30fps, 4M@25fps

CVI: 4M@30fps, 4M@25fps

CVBS: PAL/NTSC

Day/Night Mode Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC, HLC
White Balance ATW/MANUAL
AGC Support
Video Output Switchable TVI/AHD/CVI/CVBS
Material Plastic
Dimension Φ 84.6 mm × 78.9 mm (Φ 3.33" × 3.11")
Approx. 143 g (0.32 lb.)

Operating Condition -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Communication HIKVISION-C
Language English
Power Supply 12 VDC ±25%
Consumption Max. 4.3 W
IR Range Up to 20 m
