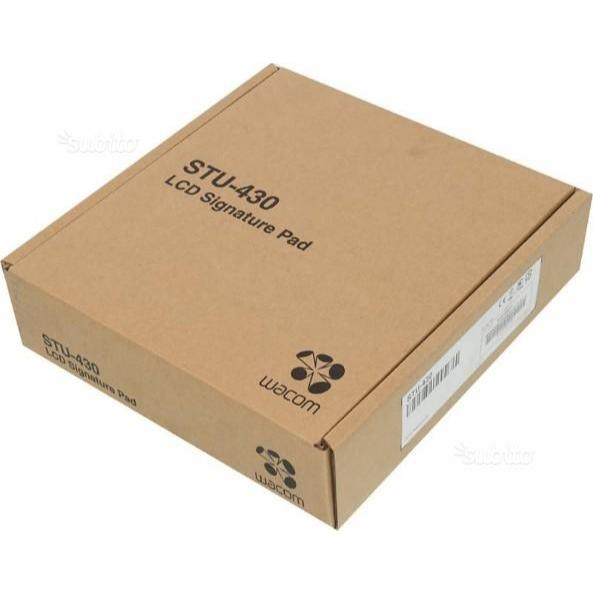

Wacom STU-430 LCD Signature Pad

SKU:

Availability: In Stock

₱15,500.00

Quantity :

Wishlist

Description

- Display & Screen
  - Display Type: F-STN, positive reflective monochrome LCD (No backlight).
  - Screen Diagonal: 4.5 inches (114.3 mm).
  - Native Resolution: 320 x 200 pixels.
  - Active Area Size: 3.8 x 2.4 inches / 96.0 x 60.0 mm.
  - Cover Plate Surface: Tempered glass with anti-glare etched finish.
  Tablet & Digital Pen
  - Reading Technology: Electromagnetic Resonance (EMR).
  - Pen Pressure Levels: 1,024 levels (non-interpolated).
  - Coordinate Resolution: 2,540 lpi (lines per inch).
  - Coordinate Accuracy: ±0.02 inches / ±0.5 mm (center).
  - Pen Report Rate: 200 points per second (non-interpolated).
  - Pen Type: Cordless, battery-free signature stylus with nylon fiber tether.
  Security & Encryption
  - Data Encryption: Internal hardware AES-256 and RSA-2048 encryption.
  - Hardware Tracking: Unique internal hardware ID assigned to every device.
  - Data Privacy: Real-time signature capture with zero internal pad memory retention.
  - Physical Security: Standard Kensington security lock slot; built-in USB cable locking system.
  Connectivity & Physical Properties
  - Communication Interface: USB 2.0 (High Speed).
  - Power Supply: USB bus-powered (no separate wall adapter needed).
  - Power Consumption: 1.0 Watt maximum.
  - Dimensions (W x H x D): 6.3 x 6.9 x 0.4 inches / 161.0 x 174.0 x 11.0 mm.
  - Weight: 0.6 lbs / 280 grams (including integrated stand).
  - Main Body Color: Gray.
  Compatibility & Environment
  - OS Support: Windows 11, 10, 8, 7, and Vista (Compatible with terminal servers).
  - Operating Temperature: +5°C to +40°C (+41°F to +104°F).
  - Operating Humidity: 30% to 80% RH (non-condensing).
