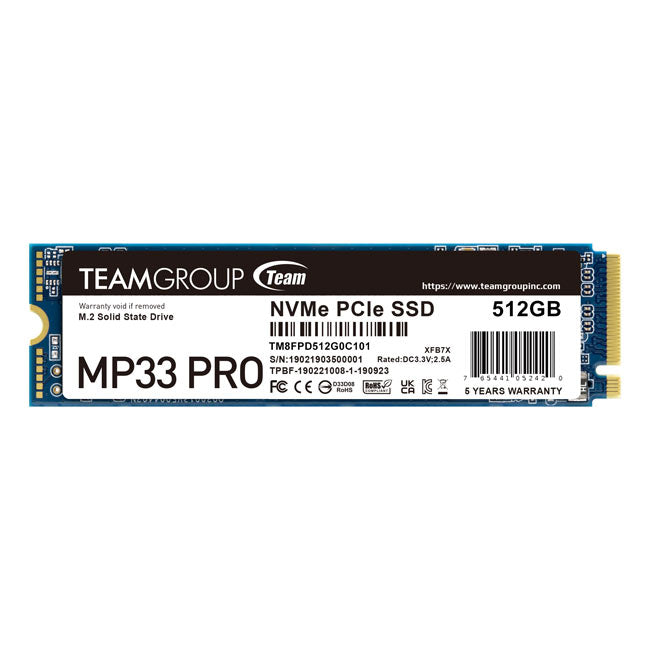

Teamgroup 512 GB MP33 PRO M.2 PCIe SSD

Teamgroup 512 GB MP33 PRO M.2 PCIe SSD

Availability: In Stock

Product Specifications

Model MP33 PRO M.2 PCIe SSD

PCIe 3.0 x4 with NVMe


512GB / 1TB / 2TB[3]


DC +3.3V

Operation Temperature

0˚C ~ 70˚C

Storage Temperature

-40˚C ~ 85˚C

Terabyte Written

512GB - 400TBW
1TB - 600TBW
2TB - 1,000TBW[4]


Crystal Disk Mark:
Read/Write: up to 2,400/2,100 MB/s[2]
Read/Write: 220K/200K IOPS Max[2]

Weight 6g
Dimensions 80(L) x 22(W) x 3.8(H) mm
Humidity RH 90% under 40°C (operational)
Vibration 80Hz~2,000Hz/20G
Shock 1,500G/0.5ms
MTBF 2,000,000 hours
Operating System Compatible with Intel and AMD platforms and has one of the following operating systems:
  • Windows 11 / 10 / 8.1 / 8 / 7 / Vista[5]
  • Linux 2.6.33 or later
Warranty 5-year limited warranty
[1] “3 to 4 times” as described in the article, is tested using CDM disk benchmark software at our company’s internal laboratory. The result of the speed test is using the read speed of the actual MP33 PRO product as the basis of comparison with the average read speed(500MB/s) of our company’s 2.5” SATAIII solid state drive.
[2] Transmission speed will vary according to different hardware/software conditions, therefore the data can only use for basic reference.
[3] 1GB=1,000,000,000 Bytes. In OS system, it would be displayed as 1,000,000,000 Bytes/1024/1024/1024 = 0.93GB
[4] Definition and conditions of TBW (Terabytes Written)are based on JEDEC standard
[5] PCIe SSD works best under WIN8.1 and WIN11 operating system. Windows Operating Systems earlier than Windows 8.1 does not support NVMe Driver natively. Users will need to install NVMe Driver prior installing the SSD.
