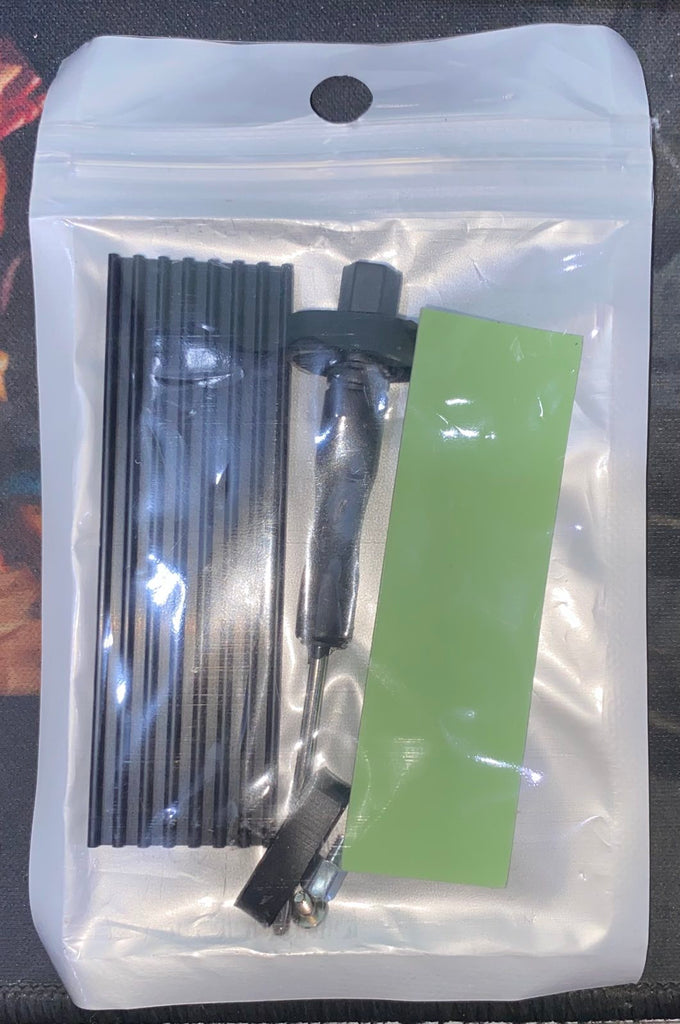

M.2 NVMe SSD Cooling and Installation Accessory Kit

• Aluminum Heatsink: The grooved black metal block acts as a passive radiator to pull heat away from the flash controller and NAND chips.
• Thermal Silicone Pad: The green rectangular strip transfers heat efficiently from the smooth top surface of the SSD to the metal heatsink.
• Mini Screwdriver: A specialized pocket-sized hand tool used to secure the tiny hardware to your motherboard.
• Mounting Screws & Standoffs: Small metallic fasteners located at the bottom to lock down the SSD or secure the heatsink jacket.

1. Prep the SSD: Remove any clear plastic covers from the drive. Avoid removing the manufacturer label sticker unless the instructions explicitly say to do so.
2. Apply Thermal Pad: Peel the protective plastic film from both sides of the green thermal silicone pad. Lay it directly flat on top of the SSD chips.
3. Mount the Heatsink: Press the black aluminum heatsink firmly onto the thermal pad. Secure it using the included rubber bands, side clips, or bottom frame screws depending on the specific model's closure method.
4. Install onto Motherboard: Insert the drive into the M.2 slot at a 30-degree angle. Push it down flat, align it with the standoff on the motherboard, and use the mini screwdriver to tighten the tiny mounting screw.
