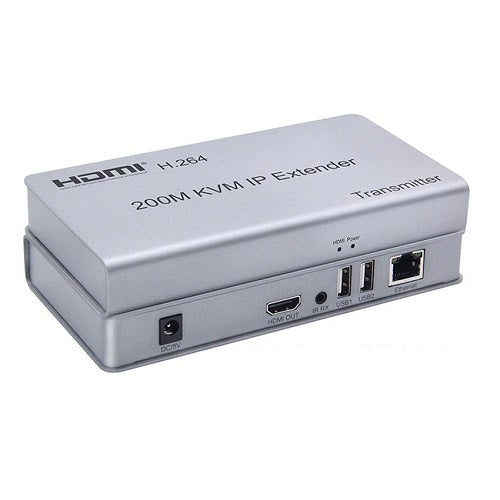

HDMI 200m KVM IP Extender - 260714

HDMI 200m KVM IP Extender - 260714

Availability: In Stock
₱4,500.00
Wishlist
        • Chassis Material: Heavy-duty aluminum alloy or iron enclosure for heat dissipation.
        • Power Consumption: Max 3W for the Transmitter; Max 3W for the Receiver.
        • Power Supply: Dual DC 5V/1A external power adapters (included).
        • Operating Temperature: -5°C to +70°C (23°F to 158°F).
        • Operating Humidity: 5% to 90% RH (non-condensing).
        • ESD Protection: Built-in 8kV air-gap discharge and 4kV contact discharge safeguards. Video & Audio Performance
          • Maximum Resolution: 1080p @ 60Hz (1920 x 1080).
          • Backward Compatibility: 1080i, 720p, 720i, 576p, 480p.
          • Video Encoding: H.264 compression algorithm.
          • HDMI Compliance: HDMI 1.3 and HDCP 1.2 digital content protection standards.
          • Maximum Pixel Clock: 165 MHz.
          • Video Bandwidth: Up to 6.75 Gbps transmission rate.
          • Audio Formats: Stereo LPCM digital audio (2-channel).
          Connectivity & Interfaces
          • Transmitter (TX) Ports:
            • 1 x HDMI Input (Source PC / DVR)
            • 1 x HDMI Output (Local Loop-out Monitor)
            • 1 x USB Type-B Port (Data link to host PC)
            • 1 x RJ45 Network Output
            • 1 x 3.5mm IR Transmitter port
            • 1 x 5V DC Power Input
          • Receiver (RX) Ports:
            • 1 x RJ45 Network Input
            • 1 x HDMI Output (Remote Display)
            • 2 x USB 2.0 Type-A Ports (Keyboard, Mouse, or Touch panel)
            • 1 x 3.5mm IR Receiver port
            • 1 x 5V DC Power Input
          Network & Distance Limits
          • Maximum Distance: 200 meters (656 feet) over solid copper CAT6 cable.
          • Cable Grade Reductions: Approx. 120–150 meters if utilizing CAT5e.
          • Network Protocol: Standard TCP/IP (IEEE 802.3 Ethernet).
          • Bandwidth Consumption: ~15 Mbps to 80 Mbps network stream per TX/RX pair.
          • Network Architecture: Supports Point-to-Point direct connection, or One-to-Many configurations via a standard unmanaged Gigabit network switch.
          Physical & Power Parameters
