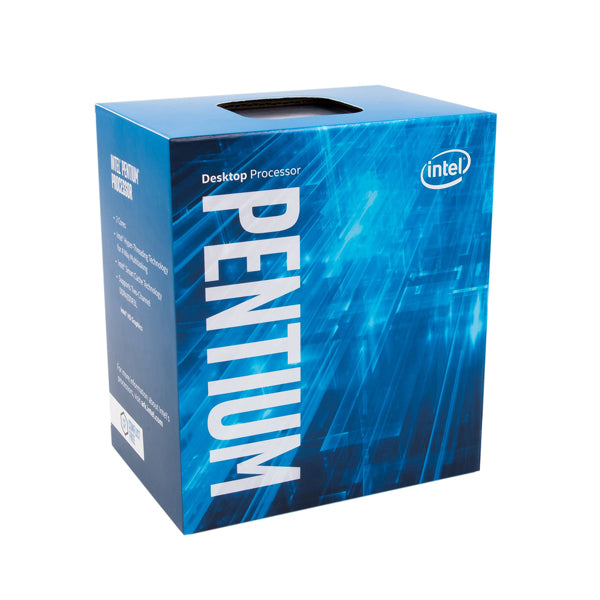

Intel Pentium G4560 3.5 GHz Dual-Core LGA 1151 Processor

Intel Pentium G4560 3.5 GHz Dual-Core LGA 1151 Processor

Availability: In Stock
₱3,100.00
Wishlist

Intel Pentium G4560 3.5 GHz Dual-Core LGA 1151 Processor

  • 2 Cores & 4 Threads
  • 3.5 GHz Clock Speed
  • LGA 1151 Socket
  • 3MB Cache Memory
  • Intel HD Graphics 610
  • DDR4-2400/2133 & DDR3L 1600/1333 Memory
  • SSE 4.1/4.2 Extensions
  • 7th Generation (Kaby Lake)

The Pentium G4560 3.5 GHz Dual-Core LGA 1151 Processor from Intel has a base clock speed of 3.5 GHz and comes with features such as Intel Hyper-Threading technology. This processor features 2 cores with 4 threads in an LGA 1151 socket and has 3MB of cache memory. Having 2 cores allows the processor to run multiple programs simultaneously without slowing down the system, while the 4 threads allow a basic ordered sequence of instructions to be passed through or processed by a single CPU core. This processor also supports up to 64GB of DDR4-2400/2133 and DDR3L 1600/1333 RAM at 1.35V, has AES New Instructions, 14nm lithography, and utilizes 7th Generation (Kaby Lake) technology.

CPU Model Intel Pentium G4560
CPU Socket cLGA 1151
Manufacturing Process 14 nm
Maximum CPU Configuration 1S
Maximum Number of PCIe Lanes 16 (Revision 3.0)
Number of Cores 2
Number of Threads 4
Base Clock Speed 3.5 GHz
Processor Interconnect : 0 x Links
L3 Cache 3 MB
Maximum Capacity 64 GB
Memory Support DDR3L 1333, 1600 MHz
DDR4 2133, 2400 MHz
ECC Memory No
Channel Architecture Dual Channel
Thermal Design Power (TDP) 54 W
Thermal Solution PCG 2015C (65 W
Maximum Temperature 212°F / 100°C
Thermal Monitoring Technologies Yes
AES Support Yes
Extension SSE 4.1/4.2
Instruction Set 64-Bit
Virtualization Yes: Intel VT-x
Graphics Chipset Intel HD Graphics 610
Maximum Resolution Support 4096 x 2304 at 60 Hz
Supported APIs OpenGL: 4.4
DirectX: 12
Number of Displays 3
Maximum Shared Video Memory 64 GB
Base Clock Speed 350 MHz
Maximum Boost Speed 1.05 GHz
DMI DMI3 (8 GT/s)
Performance Technologies Hyper-Threading, SpeedStep, TSX-NI
Security Technologies Device Protection with Boot Guard, Execute Disable Bit, Identity Protection, MPX (Memory Protection Extensions), OS Guard, Secure Key, Software Guard Extensions
Video Technologies Clear Video, Clear Video HD, InTru 3D, Quick Sync Video
Box Dimensions (LxWxH) 4.7 x 4.3 x 2.7"
