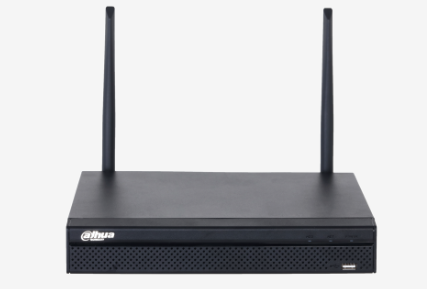

Wireless Recorder - NVR1104HS-W-S2 / IMONVR1104HS-W-S2~I000

Wireless Recorder - NVR1104HS-W-S2 / IMONVR1104HS-W-S2~I000

Availability: In Stock
₱2,699.00
Wishlist
  • System

    Main Processor

    Industrial-grade embedded processor

    Operating System

    Embedded Linux

    Operating Interface

    Web; Local GUI

    Audio and Video

    Access Channel

    4 channels

    Network Bandwidth

    Wired mode: 40 Mbps incoming, 40 Mbps recording and 20 Mbps outgoing
    Wireless mode: 16 Mbps incoming, 16 Mbps recording

    Resolution

    6 MP; 5 MP; 4 MP; 3 MP; 2 MP; 720p; D1

    Decoding Capability

    1-channel 6 MP@25 fps; 1-channel 5 MP@25 fps; 2-channel 4 MP@25 fps; 2-channel 3 MP@25 fps; 4-channel 1080p@25 fps

    Video Output

    1 × VGA, 1 × HDMI (simultaneous)

    Multi-screen Display

    1, 4 views

    Third-party Camera Access

    Onvif

    Compression Standard

    Video Compression

    Smart H.265; H.265; Smart H.264; H.264; MJPEG

    Audio Compression

    PCM; G711A; G711U; G726

    Network

    Network Protocol

    HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; NTP; DHCP; DNS; Alarm Server;P2P

    Mobile Phone Access

    Android; iOS

    Interoperability

    ONVIF (profile T/S/G); CGI; SDK

    Browser

    Chrome; IE 9 or later; Firefox

    Recording Playback

    Multi-channel Playback

    Up to 4 channels

    Record Mode

    Manual record; alarm record; motion detection record; schedule record

    Storage Method

    Local HDD and network

    Backup Method

    USB device

    Playback Mode

    Instant playback, general playback, event playback, tag playback, smart playback (motion detection)

    Alarm

    General Alarm

    Motion detection; privacy masking; video loss; PIR alarm

    Anomaly Alarm

    Camera offline; storage error; disk full; IP conflict; MAC conflict; login lock; cyber security exception

    Alarm Linkage

    Recording; snapshot; buzzer; log; preset; tour

    Port

    Audio Input

    1

    Audio Output

    1

    HDD Interface

    1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature

    USB

    1 front USB 2.0 port, 1 rear USB 2.0 port

    HDMI

    1

    VGA

    1

    Network Port

    1 × RJ-45, 10/100 Mbps self-adaptive Ethernet port

    General

    Power Supply

    12 VDC, 1.5 A

    Power Consumption

    Total output of NVR is ≤ 10 W (without HDD)

    Net Weight

    0.824 kg (1.82 lb)

    Gross Weight

    1.56 kg (3.44 lb)

    Product Dimensions

    260.3 mm × 247.3 mm × 44.7 mm (10.25" × 9.74" × 1.76") (W × L × H)

    Packaging Dimensions

    372 mm × 117 mm × 308 mm (14.65" × 4.61" × 12.13") (W × L × H)

    Operating Temperature

    –10 °C to + 45 °C (+ 14 °F to +113 °F)

    Operating Humidity

    10%–93% (RH)

    Installation

    Rack or desktop

    Certifications

    CE: EN62368-1; EN55032; EN55024; EN55035; EN61000-3-2; EN61000-3-3; EN50130-4 FCC: Part 15 Subpart B CE-RED: EN301489-1; EN 301489-17; EN300328; EN300328; EN62311; FCC ID: 47 CFR PART 15 SUBPART C
